Suzuki & Gojobori's test


You have to set the sequences as the coding sequences after inputing and editing sequences.

setCodingSequence.jpg - 149585 Bytes

Then select the tab of Other Neutrality, and choose the tab of Suzuki-Gojobori. Just click the button of "Build tree" if you could build a NJ tree, or click the button of "Load tree". The matrix of genetic distance will be in the text field if you click "Build tree". You should take a look at the next chapter, Load and edit a tree. At last, click the button of Calculate after you get the proper tree topology and length of branchs.

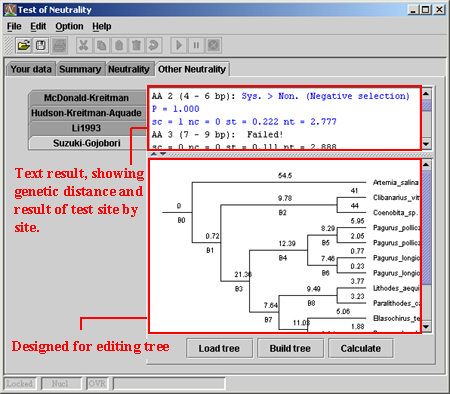

useSG_Test1.jpg - 134384 Bytes

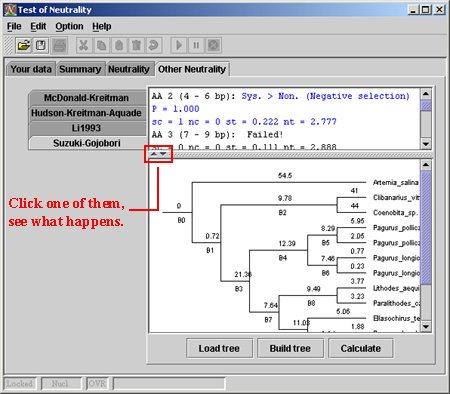

You can try one of small arrows when you want to show one panel, text or figure.

useSG_Test2.jpg - 112114 Bytes
