How to load and edit a tree


How to load a tree
The format of tree
Select a branch
Move the selected branch
Drop the dragged branch
Set the length of branch
Cut and paste the selected branch
Zoom in and out

How to load a tree

You can load the saved tree when you meet the button which title is "Load tree".

The format of tree

The format of tree is based on XML standard. An exmple is enclosed here.

<?xml version="1.0" encoding="UTF-8"?>
<tree type="rooted">
                <branch length="0.0">
                        <node name="0">
                                <branch length="1.5">
                                        <node name="seq2">
                                        </node>
                                </branch>
                                <branch length="0.5">
                                        <node name="1">
                                                <branch length="0.0">
                                                        <node name="seq1">
                                                        </node>
                                                </branch>
                                                <branch length="1.0">
                                                        <node name="seq3">
                                                        </node>
                                                </branch>
                                        </node>
                                </branch>
                        </node>
                </branch>
</tree>

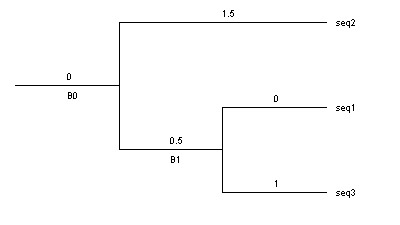

The tree encoded by the example is enclosed.

exampleTree.jpg - 12412 Bytes

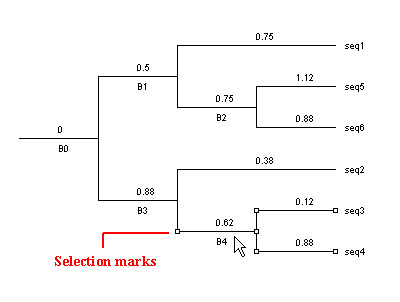

Select a branch

You just click the branch when you will select it and its children.

selectBranch.jpg - 22925 Bytes

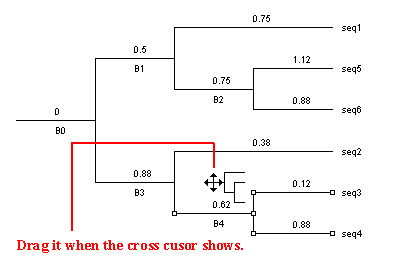

Move the selected branch

The cursor will change to the cross when you move it over the selected branchs. You can drag them as soon as the cross cursor shows.

moveBranch.jpg - 27939 Bytes

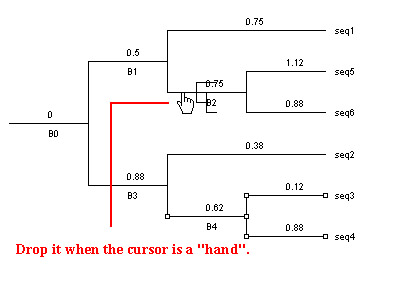

Drop the dragged branch

The cursor will change it as a hand when you are dragging the selected branchs, and reach the destination. Then you can drop them. Then the selected branchs will be moved to the destination.

dropBranch.jpg - 27021 Bytes

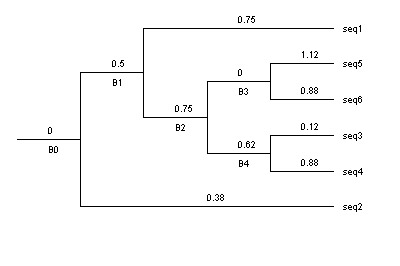

The revised tree is shown here.

treeAfterMovingBranch.jpg - 18424 Bytes

The name of all internal branchs are renamed after every revision. The length of new created branch is 0.

Set the length of branch

Selected the branch first, then right click. A popup menu will show. Choose "Set length of branch". Input the value and press OK. It's done.

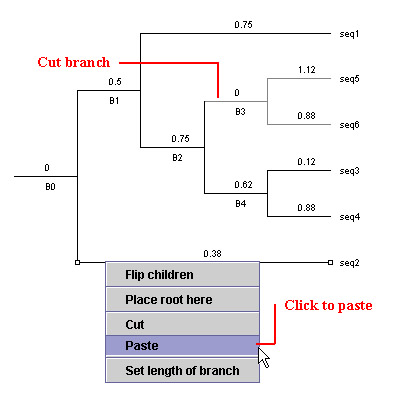

Cut and paste the selected branch

It's not easy to drag and drop when you are working a large tree. Then you can cut the selected branchs first. The color of cut branchs is grey. Then right click after selecting the destination. A popup menu will show. Choose paste menu. The cut branch will be moved to the destination.

cutAndPasteBranch.jpg - 34378 Bytes

Zoom in and out

You will get a crowded room when the tree is large. The resolution is simple. Move the cursor when you press Ctrl. You will see the cursor is changed as a magnifier, then click. The tree will zoom in. Press Alt and click the tree, the tree will zoom out.
